CNC Multi-layer Cutting Machine

Home >  CNC Machine >  CNC Multi-layer Cutting Machine

Hot-selling Multi-layer Denim Cutting Machine, CNC Textile Cutting System, Fully Automatic Fabric Cutting Machine

This multi-layer cutting bed is designed for the apparel, automotive seating, and upholstered furniture industries, capable of cutting fabric layers up to 11 cm thick in a single operation. Utilizing intelligent layout and an automatic blade sharpening system, it ensures precise, non-sticky edges during high-speed cutting. Equipped with a vacuum suction device, it stably presses down each layer of fabric to prevent shifting. Its user interface is simple and supports multiple CAD formats, effectively improving cutting efficiency and material utilization to meet the needs of mass production.

Introduction


Product Model BZ-GSD1725 BZ-GSD2030 BZ-GSD2330 BZ-GSD2630 Customizable Model
Cutting Range (W*L) 1.7m x 2.5m 2m x 3m 2.3m x 3m 2.6m x 3m Customizable size
Production Capacity 650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical gowns per hour
Applied Materials Garment, Clothes, Fabric, Textiles, Leather, etc. (It can cut 11cm after vacuum adsorption)
Cutting length No limitation with automatic fabric feeding system
Maximum Speed 0-70 m/min
Cutting precision ±0.1mm
Total Power 18 KW
Power Supply 220V/380V, 50/60 HZ
Cutting style Straight Knife Continuous Up-down Cutting
Blade cooling Automatic temperature control air-cooled system and water cooling system
Adsorption method Frequency conversion vacuum constant pressure control mode
Control System The self-developed system is well compatible with any version of CAD software
Other functions Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed

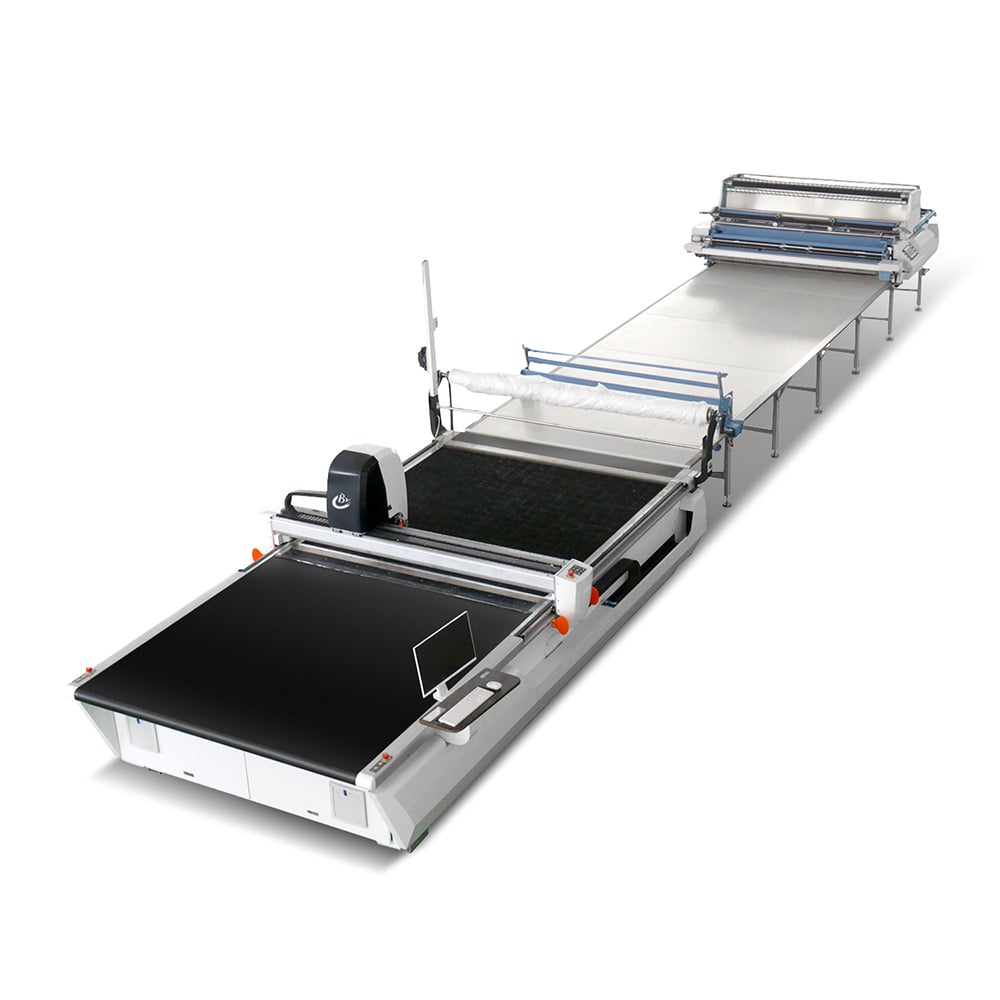

Main components 1. Automatic multi-layer cutting bed, 2. Automatic cloth spreading machine, 3. Air floatation table
Main Accessories Motor Guide Rail Switch Knife Drive Conveyor Belt
Panasonic HIWIN DELIXI Maxon German


Applications:

1. Garment Processing: Batch cutting of woven and knitted fabrics for efficient production of tops, trousers, shirts, etc.

2. Home Textile Manufacturing: Cutting large-format, multi-layered home textiles such as bed sheets, duvet covers, curtains, and sofa fabrics.

3. Automotive Interiors: Precisely cutting complex-shaped automotive interior parts such as seat fabrics, headliners, carpets, and sound insulation materials.

4. Bags and Leather Goods: Processing materials such as canvas, artificial leather, and microfiber to complete the layered cutting of bags, handbags, and wallets.

5. Outdoor Products: Cutting functional fabrics and coated fabrics for tents, sleeping bags, backpacks, etc., ensuring multi-layer consistency.


Advantages:

1. High-efficiency production: Cutting multiple layers of fabric in a single pass increases efficiency several times over, shortening the production cycle.

2. Stable precision: CNC drive ensures neat edges on each layer, with no deviation between layers.

3. Fabric savings: Intelligent nesting algorithms optimize the cutting path, reducing waste and lowering material costs.

4. Intelligent defect avoidance: Automatically identifies fabric defects and adjusts the cutting path, reducing waste.

5. Reduced labor costs: Automated cutting replaces manual operation by multiple workers, alleviating recruitment difficulties and reducing management costs.

详情页图 (2).jpg切割材料图.jpg1d1fe3053297cd20d6afd016cc13a097.jpg


FAQ:

1.—— Are you a factory or trading company?
-We are a factory specializing in the production of cutting machines,we have lots of know how knowledge.
-Each of our machines comes with a machine manual and a software manual. The company's backend stores a large number of machine installation and after-sales videos for your reference, and there is 24-hour online technical support. Until your machine can run smoothly.
2.——Do you accept customized products?
-Yes, our vibratory knife cutting machine is steady and reliable,Best-selling around the world.
3.——Do you have agents or distributors in our country?
-Yes, first of all, we have users all over the world, and we also want to find more suitable agents in your country. If you are interested, please feel free to tell us and we will sell it to you at the best price of the agent.
4.——What is the delivery process of the machine?
-You can choose your transport and distribution by air,sea or land, we will plan the most suitable transportation method for you according to your requirements and budget.
In order to recommend you the most favorable and suitable machine, please confirm the following questions:
1) What is the maximum width and length of your material? What is the cutting thickness?
2) How many kinds of materials do you want to cut?
3) Do you have any doubts about our company and machines?
4) Please tell us more requirements for cutting or other details
After your confirmation, we will recommend you a suitable machine, thanks in advance.
