hot sale fully automatic multi layer cloth cutting machine garment cutting equipment -0

CNC Multi-layer Cutting Machine

Home >  CNC Machine >  CNC Multi-layer Cutting Machine

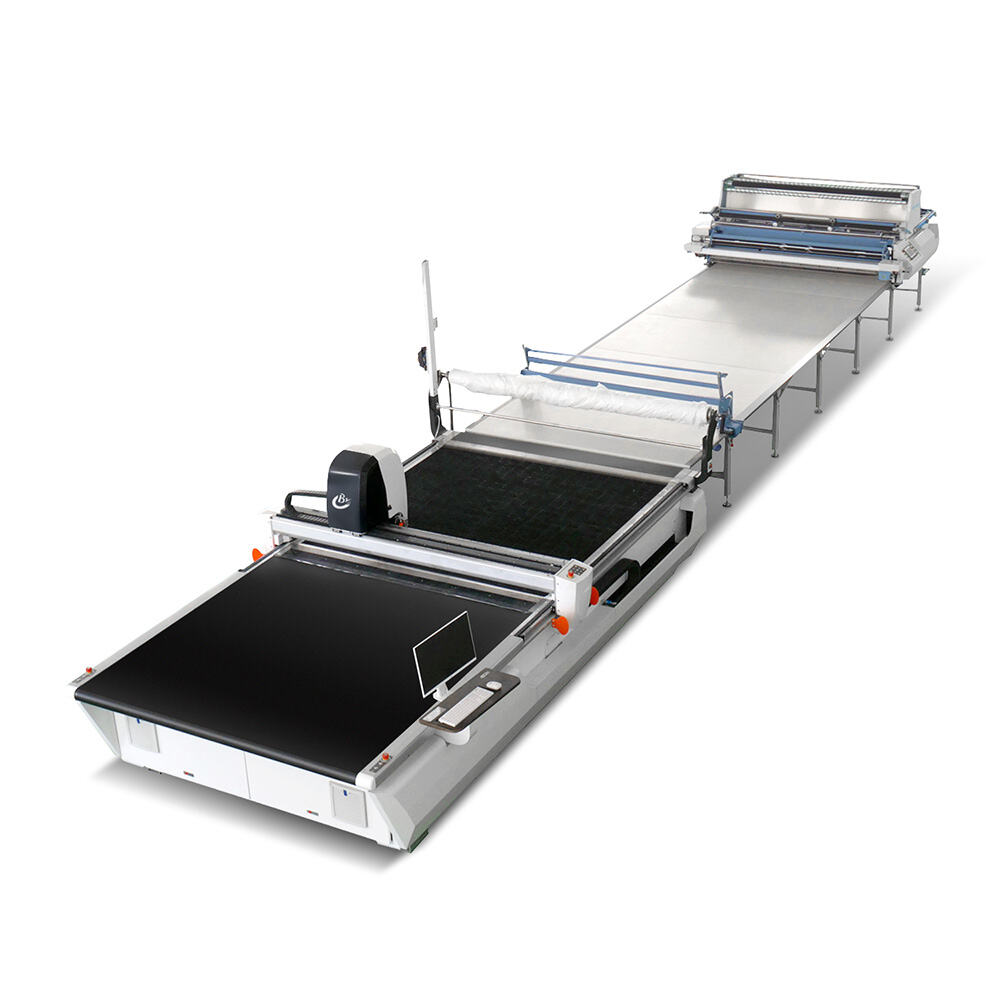

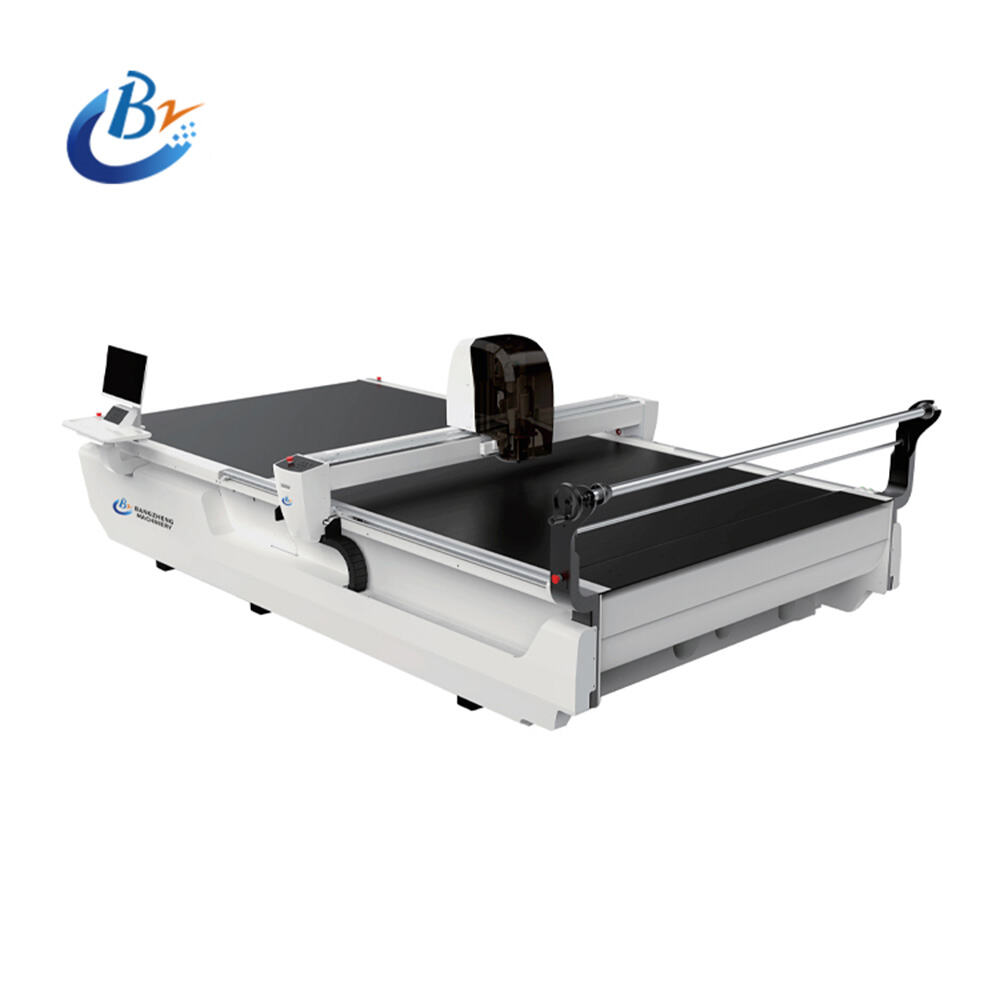

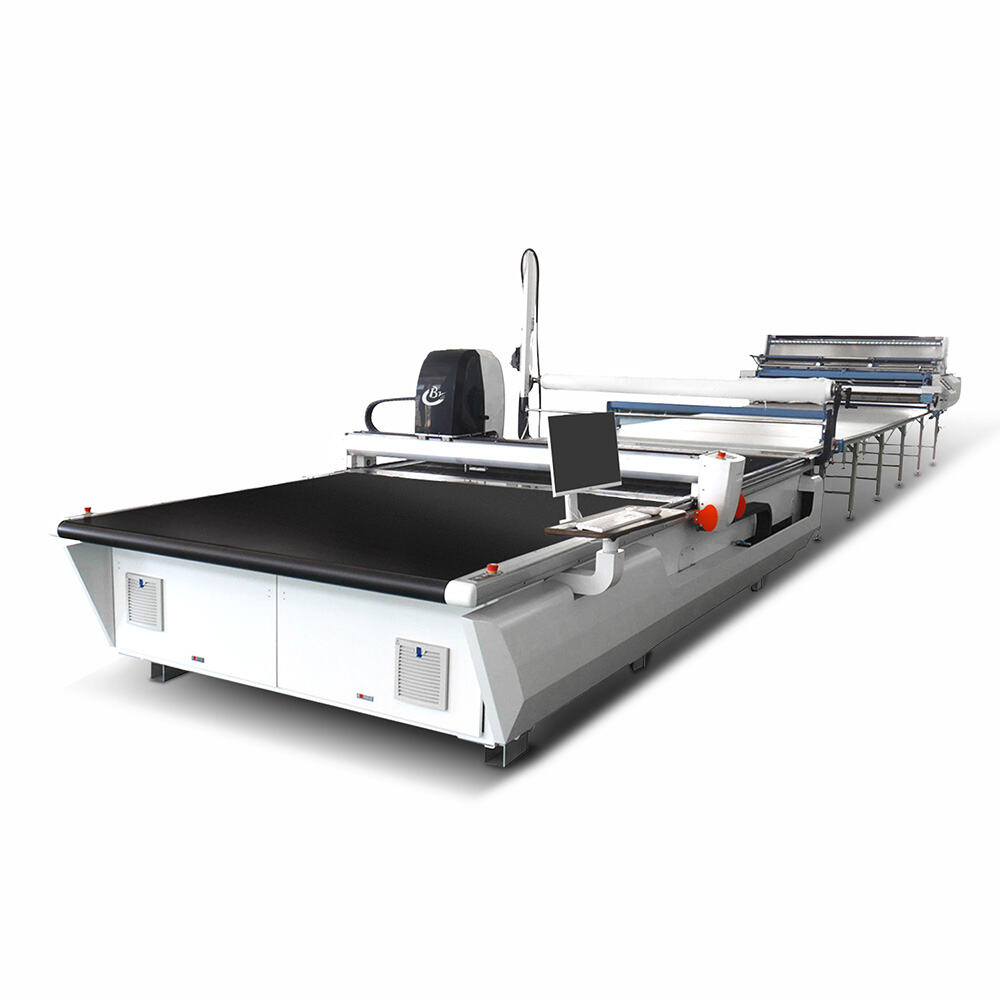

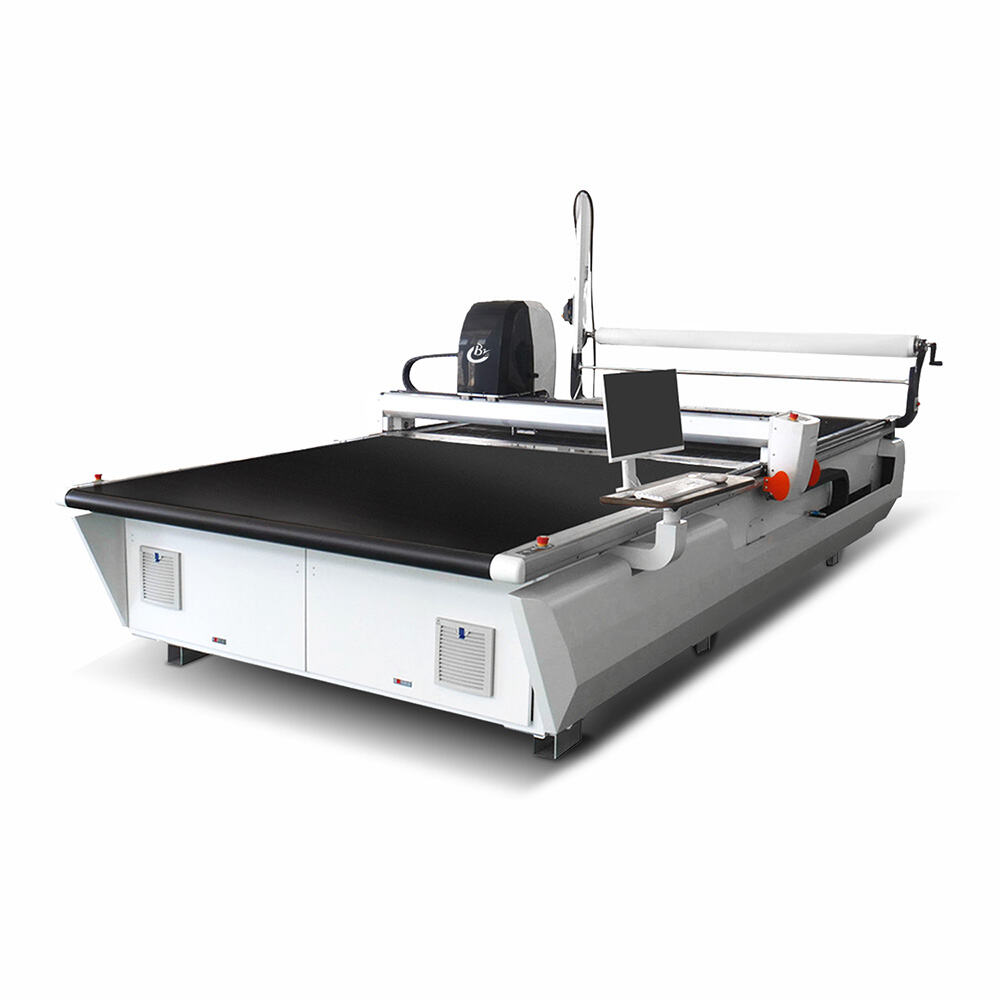

Hot Sale Fully Automatic Multi-layer Cloth Cutting Machine, Garment Cutting Equipment

Multi-layer fabric cutting machines (multi-layer cutting beds) are intelligent cutting equipment used in the garment and home textile industries. They use high-frequency vibrating blades to precisely cut fabric stacked tens of meters high in a single operation. Equipped with an automatic fabric laying and intelligent layout system, they can efficiently complete complex pattern cutting, ensuring consistent precision across layers and significantly improving production efficiency. They are an essential tool for large-scale processing of flexible materials.

Introduction

Product Model BZ-GSD1725 BZ-GSD2030 BZ-GSD2330 BZ-GSD2630 Customizable Model
Cutting Range (W*L) 1.7m*2.5m 2m*3m 2.3m*3m 2.6m*3m Customizable size
Production Capacity 650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical gowns per hour
Applied Materials Garment,Clothes,Fabric,Textiles,Leather,etc (It can cut 11cm after vacuum adsorption)
Cutting length No limitation with automatic fabric feeding system
Maximum Speed 0-70m/min
Cutting precision ± 0.1mm
Total Power 18KW
Power Supply 220V/380V , 50/60HZ
Cutting style Straight Knife Continuous Up-down Cutting
Blade cooling Automatic temperature control air-cooled system and water cooling system
Adsorption method Frequency conversion vacuum constant pressure control mode
Control System The self-developed system is well compatible with any version of CAD software
Other functions Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed
Main components 1. Automatic multi-layer cutting bed 2. automatic cloth spreading machine 3. air floatation table
Main Accessories Motor Guide Rail Switch Knife Drive Conveyor Belt
Panasonic HIWIN DELIXI Maxon German

Applications:

Multi-layer cutting tables are primarily used in large-scale garment production, capable of cutting hundreds of garment pieces at once, significantly improving efficiency. They are also widely used for precise cutting of automotive interiors (such as seat fabrics), home textiles (sofa covers, curtains), as well as bags and outdoor products. Computer-controlled, they ensure high-precision, standardized processing of complex shapes.


Advantages:

1.This product is a cutting device specially designed for flexible materials, fully automatic computer control, one-button design layout, cutting thickness 0.1cm-11cm, suitable for multi-layer cutting.
2.The maximum cutting speed is 70m/min, and the cutting accuracy is within 0.1mm, which is far higher than the traditional manual cutting efficiency.
3.The built-in intelligent typesetting software can achieve a material utilization rate of more than 98%.
4.Automatic material collection and feeding can save 5-6 labors, and the cutting process is smokeless and odorless


FAQ:

1.—— Are you a factory or trading company?
-We are a factory specializing in the production of cutting machines,we have lots of know how knowledge.
-Each of our machines comes with a machine manual and a software manual. The company's backend stores a large number of machine installation and after-sales videos for your reference, and there is 24-hour online technical support. Until your machine can run smoothly.
2.——Do you accept customized products?
-Yes, our vibratory knife cutting machine is steady and reliable,Best-selling around the world.
3.——Do you have agents or distributors in our country?
-Yes, first of all, we have users all over the world, and we also want to find more suitable agents in your country. If you are interested, please feel free to tell us and we will sell it to you at the best price of the agent.
4.——What is the delivery process of the machine?
-You can choose your transport and distribution by air,sea or land, we will plan the most suitable transportation method for you according to your requirements and budget.
In order to recommend you the most favorable and suitable machine, please confirm the following questions:
1) What is the maximum width and length of your material? What is the cutting thickness?
2) How many kinds of materials do you want to cut?
3) Do you have any doubts about our company and machines?
4) Please tell us more requirements for cutting or other details
After your confirmation, we will recommend you a suitable machine, thanks in advance.
